Titanium vs 440C Steel: What the Numbers Mean

Somewhere around the third cardboard box, every owner of a titanium card discovers the thing I am about to tell you for free: titanium does not hold an edge the way 440C does. It is not close.

I could leave that out and most of you would still buy the titanium, because titanium is the word that sounds like the right answer. It is also the most common question in my inbox — titanium or steel — and for ten years I answered it in halves, because the whole answer requires saying out loud where titanium loses.

So, out loud, and in full this time.

01The numbers, before the opinions

MECHANICS · SAME LOAD

One card, two sets of physics

SAME LOAD · SAME GEOMETRY

440C STEEL 200 GPa ×1.00

Ti-6Al-4V 114 GPa ×1.75

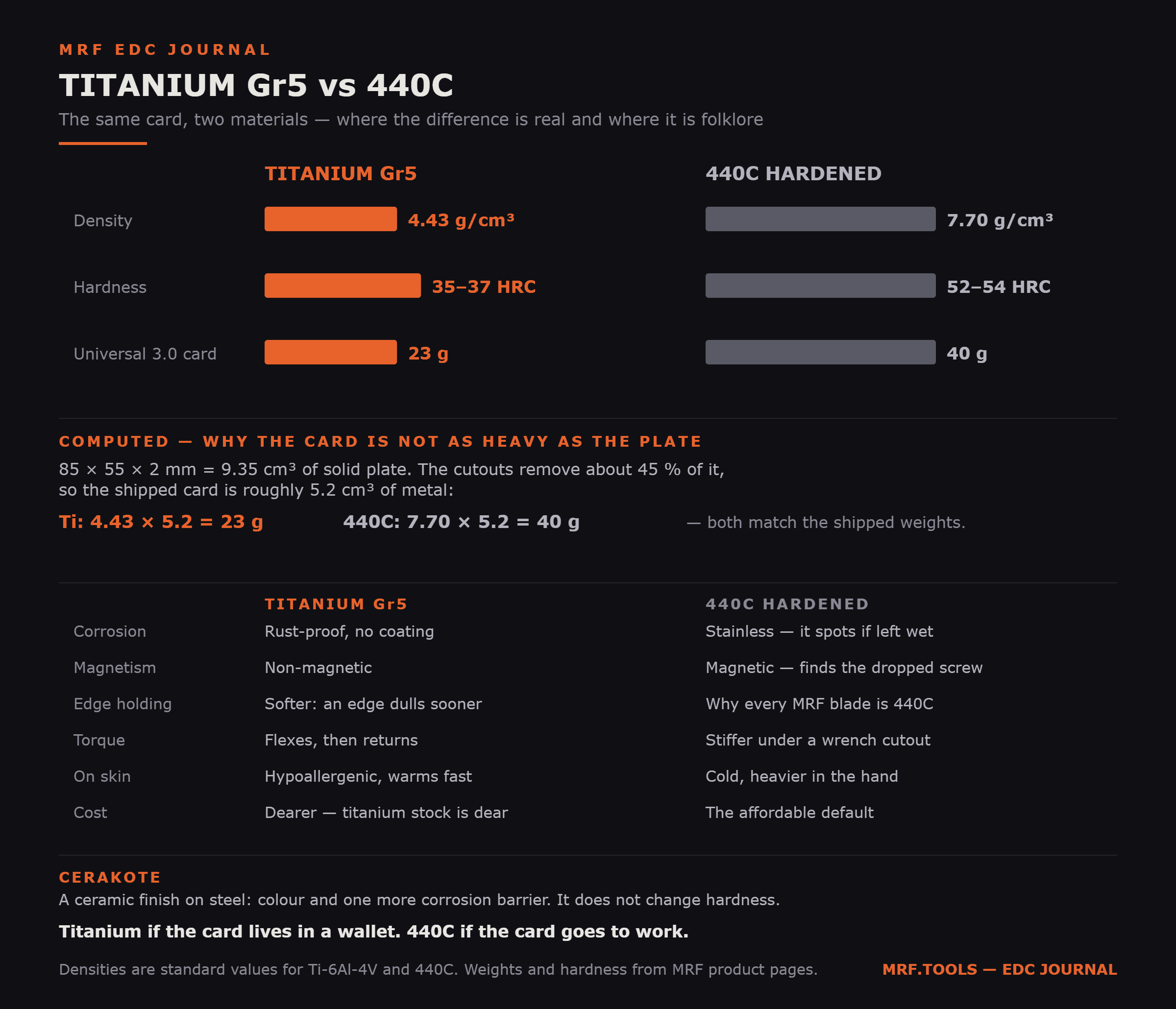

Ti / 440C4.43 / 7.70 g·cm³114 / 200 GPa35–37 / 52–54 HRC6.7 / 24.2 W·m⁻¹K⁻¹

Six of those rows are pure physics and do not care what any brand says about them. Two — hardness and price — are decisions we make, and I will get to why we make them the way we do.

The line everyone reads is density: 4.43 against 7.70 g/cm³. Titanium is 1.73 times lighter for the same shape. The line nobody reads is the one directly underneath it.

02Where titanium loses, in two places

The edge. We heat-treat 440C to 52–54 HRC. Grade 5 titanium lands around 35–37 HRC and cannot be pushed meaningfully higher — the alloy does not respond to heat treatment the way a high-carbon martensitic steel does. That is fifteen to nineteen points of Rockwell, and Rockwell is not a linear scale. In practice it means a titanium cutting edge deforms where a steel one keeps cutting. Anything on the card that scrapes, cuts, pries against a hard corner or takes an impact will show it first.

The stiffness. This is the one that surprises engineers who have not worked with the material. Titanium's elastic modulus is 114 GPa. Steel's is 200. Same card, same geometry, same load — the titanium one deflects 1.75 times as much.

You feel this the moment you put a 13 mm nut in the wrench cut-out and lean on it. The steel card resists and turns the nut. The titanium card flexes, and some of the force you applied went into bending the card instead of moving the fastener. Nothing breaks. Both cards survive it. But one of them is doing the job and the other is doing the job while arguing about it.

This is why the Extreme exists in both materials and why the steel version is not the budget version. If your use case is torque, steel is not the compromise. Titanium is. And if torque is the whole reason you are buying a card, take the Extreme Full Kit: it adds the torque handle that clicks into the plate, and a flat card is a short lever where the handle is a long one.

03Why we stop hardening 440C at 52–54 HRC

440C will go to 58–60 HRC. Carpenter's own data sheet says about 60. Plenty of knife steels live up there and every spec sheet in this category treats a bigger number as a better one.

We stop at 52–54 on purpose, and this is the part of the article I would want to read if somebody else had written it.

HEAT TREATMENT

Hardness is a job description, not a grade

Universal · titanium35–37 HRC Universal · steel52–54 HRC

Extreme · steel47–49 HRC

BRITTLEFOR A 2 mm PLATE

25 30 40 50 60 HRC

A knife blade is a wedge. It is thick at the spine, supported along its whole length, and it is asked to cut — a load that runs along the edge, not across the blade. At 58 HRC that geometry is fine.

A card is a 2 mm plate. It is a lever. People use it as a pry bar, they put it in a wrench cut-out and pull, they drop it on concrete, they carry it in a back pocket and sit on it. Hardness and toughness trade against each other in every steel: the harder you take it, the less it deforms before it fractures. At 58–60 HRC a 2 mm plate under a prying load does not bend. It snaps, and it snaps without warning, because there is no plastic deformation to warn you.

52–54 HRC is where the card still holds an edge properly and still bends before it breaks. That number is not a limitation of our heat treatment. It is the heat treatment.

And it is not one number across the line

The Extreme runs 47–49 HRC. Five points softer than the Universal, on the same alloy, and that is deliberate too.

Look at what the Extreme actually is. It is a wrench set — 6 to 17 mm metric, 5/16 to 9/16 imperial, spoke keys in three gauges — plus a 1/4 inch bit driver and a torque handle that clicks into the plate. That handle ships with the Full Kit, not with the Standard card. There is no knife on it. The only cutting function is a cord cutter, and a cord cutter is a recessed edge that slices paracord and zip ties. It is the supporting act, not the reason the card exists.

Nothing on that card is asked to stay sharp. What it is asked to do is take a 17 mm nut and a two-handed pull without the wrench cut-out spreading and without the plate cracking at a corner. For that job toughness beats hardness every time, so we trade the five points away and get them back as fracture resistance.

The Universal is the opposite case. It has a proper cutting edge, and an edge that rolls over is an edge that has stopped working. So it goes to 52–54 — as high as a 2 mm plate can safely be taken. Cardboard, of all things, is the edge-killer here: its clay coatings and silicate fillers work like miniature grinding stones, and they dull a 35–37 HRC titanium edge noticeably sooner than a martensitic steel one — if your week is heavy on boxes, the steel edge is the right pick. Field care follows the same split: steel touches up with any pocket ceramic or diamond rod; titanium's toughness resists fine hand honing and gums up abrasive instead of taking a clean burr.

Same steel, same furnace, two answers. Hardness on a spec sheet is a number. Hardness in a tool is an answer to the question of what the thing is asked to survive.

There is a second consequence of that design decision, and it happens at the airport rather than on the workbench: no blade means nothing to harden and nothing to surrender at a checkpoint, which is why the Extreme is built to fly in a carry-on while most multitools are not — with the caveat this site repeats on purpose: the final call at any scanner belongs to the officer, not the spec sheet.

The titanium number moves, and it barely matters

One more line about hardness, and this one is about titanium. Grade 5 is a chemical specification — roughly 6% aluminium, 4% vanadium — not a hardness specification. Sheet arrives from different mills in different conditions, and across our deliveries the cards land somewhere between 35 and 37 HRC. That is a real spread and I am not going to pretend we hold it to the point.

Here is why it does not change what you feel in your hand.

Stiffness — how much the card flexes before anything permanent happens — is the ×1.75 from the first drawing, and neither hardness nor heat treatment moves it: a titanium card at 35 HRC and one at 37 bend by exactly the same amount under the same load, and so do the Extreme at 47–49 HRC and the Universal at 52–54. What the furnace changes is when a card stops coming back, not how far it moves.

Where the spread does show up is wear at the contact points. Under heavy cyclic torque a titanium wrench slot won't snap — it slowly galls and flares where hardened steel bolts bite into a 35–37 HRC frame. The geometry keeps working; the fit gets lazier over years, not weeks. Steel at 47–54 HRC holds its corners against the same bolts — that, not the weight, is what you're choosing between.

So the spread in the titanium spec shows up in wear and edge behaviour, where hardness is the whole story. It does not show up in the thing people are describing when they say a card feels solid. That is stiffness, and stiffness comes from the material, not from the furnace.

See every cutout in 3D → Tool Explorer

04Where titanium wins, and weight is the least of it

Titanium is the right answer often. Just not for the reason it gets bought.

Corrosion, and this is the real one. Grade 5 forms a ceramic oxide layer the instant it meets air, and that layer reforms every time you scratch it. Salt water, sweat, humidity, a wet pocket for three days — none of it matters. Six months next to keys, for the record: titanium collects fine swirl scratches that read as patina, and the oxide reforms over every one of them. 440C is a stainless steel with moderate corrosion resistance, which is a polite way of saying it is fine in a city and unhappy around chlorides — and the failure mode is pitting: point-corrosion that picks at working edges and cutout corners, not rust-through of the plate. Fishing, coastal work, sweaty pockets in a hot climate: titanium, and it is not a close call.

Thermal conductivity, which nobody lists. Titanium moves heat at 6.7 W/m·K, steel at 24.2 — a factor of 3.6. You will notice this in January. The steel card pulls heat out of your fingers and reads as cold metal. The titanium one is at the same temperature and does not feel like it. It is a small thing that you experience every winter for as long as you own the card.

Hypoallergenic. Grade 5 contains no nickel. If steel jewellery gives you a rash, this is not a preference, it is the whole decision.

And then weight. The titanium Universal 4.0 is about 26 g. Its steel twin has identical geometry, so the density ratio does the rest: 46 to 55 g on the same spec plate, depending on the stock and the finish — twenty to twenty-nine grams more. Four or five US quarters. That is the whole physical difference you are choosing between, and it is smaller than the word "titanium" makes it sound.

And weight is mostly not about the material anyway. Across our line, cards run from about 17 grams — that is the anodised aluminium Designer — through 23 g for a titanium Universal 3.0 up to roughly 70 for a steel Adventur. Inside one material, what decides where a card lands in that range is thickness, not alloy. The Universal family is a 2 mm plate. The Extreme and the Adventur are 3 mm, because they are built to take real torque, and a 2 mm plate under a torque handle behaves like a spring. Three millimetres at credit-card footprint is fifty percent more metal than two — that one decision moves more grams than switching alloys does. One guard-rail for the intuition: a 3 mm titanium plate still lands lighter than a 2 mm steel one — thickness moves the needle furthest within a material, not across them.

If you are buying titanium for the weight, you are buying it for the wrong thing. Buy it for the oxide layer. Neither material, incidentally, decides whether the card clears airport security — that is edge geometry, and it is a separate conversation.

05The spec that does not matter, and I wrote it myself

There is a line on our own product page: titanium is non-magnetic, safe next to your cards. It is true. 440C is martensitic, which means it is ferromagnetic in the hardened condition, and titanium is not.

It is also nearly irrelevant, and I am the person who put it there.

A hardened steel card is not a magnet. It can be magnetised — park it against the clasp of a magnetic wallet for a year and it will pick up a weak field — but that field is nowhere near what it takes to wipe a magnetic stripe, and the bank card in your wallet has a chip in it anyway. Across ten years and several thousand cards shipped, the number of people who have written to me about a demagnetised bank card is zero.

The line stays on the page because it is accurate. I am telling you here that it should not move your decision by a single percent.

Same for tensile strength, the other number that gets quoted. Grade 5 runs 895–1170 MPa and hardened 440C goes higher still, and both are far more than a hand can apply to a 2 mm plate. Neither card fails by tearing.

06Cerakote, the third answer

There is a version of this decision that is neither material: 440C with a Cerakote ceramic coating, which is a finish borrowed wholesale from the firearms industry, where things get carried in sweat and rain for a living.

You keep steel's hardness and stiffness underneath, and you add a corrosion barrier and a colour on top. On a card that mostly lives in a wallet, it closes most of the gap that would otherwise push you to titanium. The Lumberjack in the photo above is the same idea with the choice made both ways: the plate underneath is Grade 5 titanium or 420HC stainless, and the Cerakote is the part your fingers actually meet.

The limit: a coating is a coating. It wears exactly where you use the tool — the wrench cut-outs, the pry edge, the bit driver — because that is where metal meets metal. On the flat faces it will look new for years. On the working edges it will look used, and it will look used sooner than you expect. That is not a defect, and I would rather tell you now than read it in a review.

07Which one, by what you actually do

DECISION

Pick by what you actually do

Salt, sweat, rain The oxide layer reforms every time you scratch it. TITANIUM

Torque and prying 200 GPa against 114. It argues less. STEEL

Nickel allergy Grade 5 contains no nickel at all. TITANIUM

Cold hands Steel drains heat from your fingers 3.6× faster. TITANIUM

WHERE MOST PEOPLE ARE Wallet carry, the occasional job Flip a coin. Colour is a completely legitimate way to choose a tool you will look at every day.

The pattern that actually shows up in orders, once you strip out the word "titanium" doing marketing work: people who work near water buy titanium and are right. People who work with their hands buy steel and are right. People who mostly carry the card and occasionally use it can flip a coin, and the coin is a colour preference, which is a completely legitimate way to choose a tool you will look at every day.

---

Every material decision is a trade, and the ones sold as pure upgrades are the ones where somebody left a column out of the table. Titanium buys you an oxide layer and a warmer piece of metal, and it costs you fifteen to nineteen points of Rockwell and half the stiffness. That is a good trade for most people and a bad one for some, and which group you are in has nothing to do with how much you want to spend.

If you are still deciding, the Card Finder asks four questions, and it asks about climate and use before it asks about budget, which is the correct order.
